ISE7 Digital pressure switches compatible with IO-Link system
Measuring range
0...100 bar
Process temperature
0...+50 °C
Protection degree
IP67
Signal output

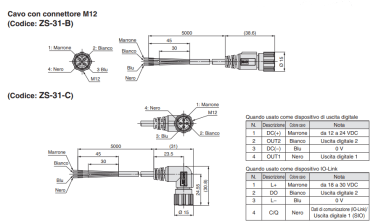

2 x IO-Link digital outputs of NPN or PNP type
ISEXXG series high precision digital pressure switch is designed to be used in high pressure applications.
The angled display offers greater visibility from any position, and after installation, it can be rotated 336° for easy viewing.
The key lock security code prevents unauthorized people from making changes to the settings.
The device can display the maximum or minimum value, or both, on a single screen.
Suitable for a wide range of applicable fluids, it can be used safely in various industrial processes.
Taking advantage of IO-Link, settings can be changed while checking the measured value.
Offers repeatability of ±0.5% F.S. or lower, with outputs available as IO-Link and NPN/PNP. Response times are selectable.
