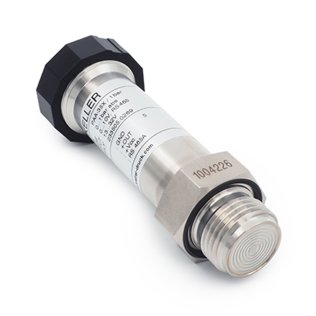

23Ed ATEX Pressure transmitter

23Ed ATEX Pressure transmitter

23Ed Explosion-proof Atex pressure transmitter for neutral or aggressive fluids

Measuring range up to 300 bar

Process temperature -40...+100°C

Atex approval present

Accuracy ±0,5% Full scale

These piezoresistive Pressure Transmitters with burst-proof housing shell are approved for use in areas at risk of explosion group II.
They provide stable and accurate measurements of absolute and gauge pressure for liquid and gaseous elements in the pressure range of 0.1 to 300 bar.

The modular structure of this product range allows extremely flexible applications and solutions that meet the specific needs of users. Numerous versions are available, with different process connections, different materials and filling oils, or versions for use with oxygen.This series is based on the stable piezoresisive transducer with analog electronic circuits. The zero point and the sensitivity, as well as the temperature coefficients for the zero point and the sensitivity, are compensated by resistors and / or potentiometers.

ORDER CODE:
PAA23-ED-1-420-G14

Price per Unit

€572.00(Vat excluded)

€697.84(Vat included)

Qty	Unit price (Vat excluded)	Unit price (Vat included)
1	€572.00	€697.84

Availability

20 working days

Quantity

Request dimensioning and quote

Print product sheet

CONFIGURE THE PRODUCT

In this section you will find all the variants available for this model, improve your configuration with the drop-down menus below, select the desired quantity and click on "ADD TO CART or REQUEST A QUOTE"

The price displayed refers to a specific configuration and changes based on the variants selected.
The configuration follows an indicative order. Configure the product according to your needs.

Pressure type

Process connection type

Diameter process connection

Maximum measurable pressure

Output details

Product features
Principle of measurement	Pressure
Informations measured	Level, Pressure
Detection type	Continuous measurement
Measurable media	Air, Diesel, Hydraulic Oil (Petro), Natural Gas, Water., (the indications on liquids are indicative and vary with the configuration of the product)
Explosion protection	Xd atex
Pressure type	Absoluta
Minimum process fluid temperature	-40 °C
Maximum process fluid temperature	100 °C
Maximum measurable pressure	1 Bar
Measurement type	With contact
Storage temperature	-40...+100 °C
Ambient temperature	-40...100 °C
Sensor type	Piezoresistive silicon sensor
Properties of the fluid	Aggressive
Minimum measurable pressure	-1 Bar
Area of use	For ATEX Zone 2 atmospheres
Details of the signal inputs and outputs
All signal outputs available	RS485, 4...20 mA, 0...10 Vdc
load resistance	(U-8 V) / 0,025 A per uscita in corrente; > 5 k per uscita in tensione
Output details	1 x Analog 4…20mA
Electrical data
Voltage type	24 Vdc
Reverse polarity protection	No
Degree of protection	IP50
Insulation resistance	> 10 MΩ @ 50 V
Cable details	PUR-cable, length 2 m (with PE-sheath and reference tube for gauge). Others on request
Operating voltage	8...32 Vdc (2 wires 4-20mA) 13...32 Vdc (3 wires 0-10V) 3,2...32 Vdc (digital RS485)
Mechanical data
Process connection type	Threaded GAS(M)
Diameter process connection	1/4" - DN6
Materials in contact with the measured fluid	AISI 316L (1,4435) - Stainless steel, FKM (VITON®) - Copolymer of vivilidene fluoride
Seal materials	FKM (VITON®) - Copolymer of vivilidene fluoride
Other housing materials	AISI 316L (1,4435) - Stainless steel
Diaphragm material	AISI 316L (1,4435) - Stainless steel
Oil filling	Silicone oil
Body material	AISI 316L (1,4435) - Stainless steel
Height	111 mm
Width	25 mm
Depth	25 mm
Case material	AISI 316L (1,4435) - Stainless steel
Performance data
Cycles of measurement	> 10 milioni di cicl. @ 25 °C
Accuracy	0,2 % Full scale standard 0,5 % Full scale max.
Total error band	· FS > 1 bar 0,01 %FS/°C max. p. Zero \| 0,02 %/°C max. of sensivity · FS 1 bar 0,02 %FS/°C max. p. Zero \| 0,02 %/°C max. of sensivity · FS 0,5 bar 0,03 %FS/°C max. p. Zero \| 0,02 %/°C max. of sensivity · FS 0,2 bar 0,05 %FS/°C max. p. Zero \| 0,02 %/°C max. of sensivity
Long-term stability	0,1 % Full scale typ (Fondo scala > 1 bar) 1 mbar typ (Full scale ≤ 1 bar)
Approvals
Naval approvals	None
Food / pharmaceutical approvals	None
Atex approvals	ATEX / Europe
Standards and Certifications	RoHS, Directive 2014/35/EU “Low voltage Directive”, Directive 2014/30/EU “Electromagnetic compatibility Directive”
EMC applied harmonized standards	EN 61326-2-3 2013, EN 61000-6-3:2001/A11:2004
CE omologation	Yes
Low voltage applied harmonized standards	EN 61010-1: 2010
Rohs applied harmonized standards	EN IEC 63000:2018
Atex details	II 2 G Ex db IIC T6 to T4 Gb \| EPS 22 ATEX 1 007X \| IECEx EPS 22.0002X \| EPS 22 UKEX 1 007X
Logistics
Type of packaging	Carton BOX
Contains batteries	No
ETCN	N/D
country of origin	Switzerland
Customs Code	90262020
Gross weight	0,7 kg
Net weight	0,2 kg
Packaging volume	0,007 m³
Packing length	26 cm
Packaging width	21 cm
Packaging depth	13 cm

Attachment	Format	Size
Datasheet (Italian)	pdf	1.09 MB	Download
Datasheet (English)	pdf	1.08 MB	Download
