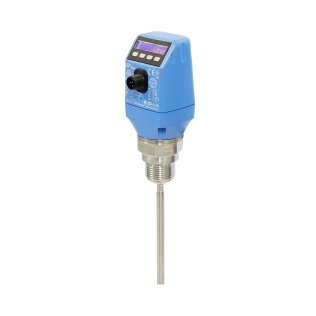

LFP Guided Microwave Level Transmitter

LFP Guided microwave level transmitter. Suitable for the food sector.
Measuring range up to 2 m
Process temperature up to 180°C
Protection degree IP67
Atex approval Only safe zone

The LFP level meter represents a versatile and reliable solution, ideal for meeting the critical needs of high temperatures and rigorous cleaning requirements.
Designed specifically for the packaging and food industries, the LFP offers a combination of compactness, advanced technology and flexibility.

The heart of the system is based on the principle of guided radar (Time Domain Reflectometry).
LFP simultaneously acts as a configurable analog sensor, digital threshold sensor and display.

Made with 316L stainless steel body, the meter offers IP69K and IP67 protection ratings, ensuring reliable resistance even in harsh environments.

All parts in contact with the external product comply with FDA standards, and the EHEDG and ECOLAB certifications attest to their suitability for hygienic environments, temperatures up to 150°C and exposure to aggressive chemicals.

The flexibility of the LFP extends to the ability to work with SIP and CIP cycles in the Food & Beverage sector, and offers probe options of various lengths to suit different applications.

Main features:
  • Level monitoring in hygienic applications
  • Single probe can be manually shortened up to 2,000 mm in length
  • Polished surface with roughness Ra < 0.8 µm
  • Process temperature up to 150°C
  • Process pressure tolerated up to 16 bar
  • Resistant to CIP/SIP washing cycles
  • IP67 and IP69K protection rating
  • Hygienic process connections interchangeable and can be ordered separately
  • 3 in 1: display, analogue output, digital output for static level control
  • Analog output 4… 20mA / 0…10 V, switchable, 2 transistor outputs
  • Communication via IO-Link
  • FDA compliant, EHEDG certified


Benefits for the Customer:
  • Robust design for greater durability
  • High flexibility thanks to the manually shortenable probe and interchangeable connections
  • Cost savings thanks to different output signals: only one device for level detection and dynamic control
  • Absence of maintenance needs and rapid commissioning: saving time and costs
  • Average calibration or recalibration not necessary


Application Areas:
  • Level monitoring in tanks or filling systems/machines
  • Level control in component rinsing and washing systems, also in F&B sectors
  • Level detection in CIP washing systems
  • Level value control in the cosmetic and pharmaceutical industry
  • Level measurement in industrial processes with difficult environmental conditions, high temperatures and pressures
ORDER CODE:
LFP0500-G1NMB

Price per Unit

€686.00(Vat excluded)
€836.92(Vat included)
Qty Unit price
(Vat excluded)
Unit price
(Vat included)
1 €686.00 €836.92
Availability
15 working days
Quantity
CONFIGURE THE PRODUCT

In this section you will find all the variants available for this model, improve your configuration with the drop-down menus below, select the desired quantity and click on "ADD TO CART or REQUEST A QUOTE"

The price displayed refers to a specific configuration and changes based on the variants selected.
The configuration follows an indicative order. Configure the product according to your needs.
