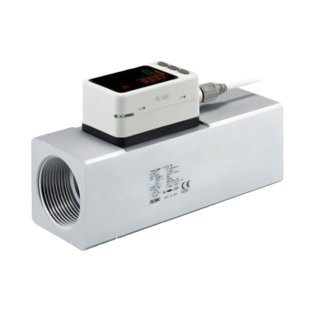

PF2M7 Digital flow switch

PF2M7 Digital flow switches for air, nitrogen, carbon dioxide and argon
Measuring range Up to 200 l/min
Process temperature 0...+50°C
Signal output 4...20 mA - PNP
Process pressure -1...7,5 bar
The sensors of the PF2M7 series, to measure the flow rate, exploit the physical principle of thermal conductivity: the fluid in contact with a foil feeds conductive material, in this case gold, removes a small amount of heat. The electric current used to keep the temperature of the plate constant, within the flow rate of the fluid in the pipeline. If properly measured and related to the type of fluid inside the pipeline, the current is able to return the flow rate value.
The small size of the instrument allows parallel mounting with several instruments thus making assembly on the panel easier.
The PNP type output allows a direct connection with the PLC while the 4...20 mA current analogue output allows a very accurate instantaneous flow rate value to be obtained.
The response time for flow measurements can be set from 60 seconds up to 0.01 seconds.
ORDER CODE:
PF2M705S-F1-F

Price per Unit

€225.00(Vat excluded)
€274.50(Vat included)
Qty Unit price
(Vat excluded)
Unit price
(Vat included)
1 €225.00 €274.50
Availability
6 working days
Quantity
CONFIGURE THE PRODUCT

In this section you will find all the variants available for this model, improve your configuration with the drop-down menus below, select the desired quantity and click on "ADD TO CART or REQUEST A QUOTE"

The price displayed refers to a specific configuration and changes based on the variants selected.
The configuration follows an indicative order. Configure the product according to your needs.
