RIF620

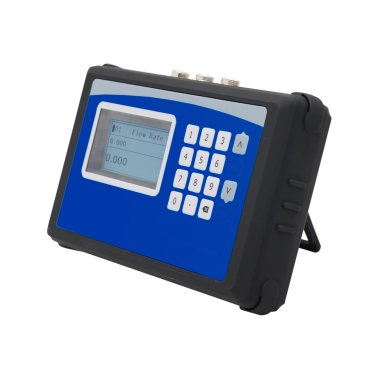

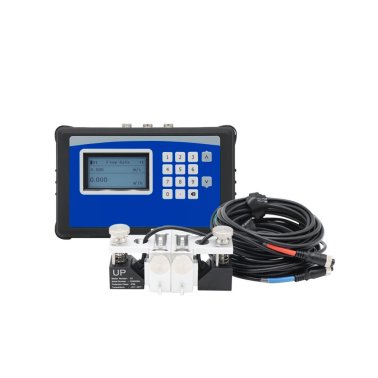

The RIF620 is a portable instrument designed to measure flow, and optionally energy, noninvasively using clamp-on ultrasonic transducer technology. It is ideal for quickly verifying the flow reading of another meter and for recording system values over an extended period of time. Due to its portability, it can be easily moved and installed in different pipes, making it convenient to transport from one site to another.
Key Features:
- Pipe size: Compatible with pipe sizes from DN25 to DN1200mm (1"~48").
- Fluids: Suitable for single-phase liquids (without suspended particulates or bubbles).
- Temperature: Operates in a temperature range of -40℃ to 80℃ (standard).
- Accuracy: ±1% of the measured value.
- Flow range: ±0.01...±12 m/s.
Additional features:
- BTU function: Can be used as a portable energy meter.
- Temperature: transducers up to 130℃
Applications:
This instrument is ideal for measuring flow throughout the hydraulic infrastructure, verifying the performance of sensors, pumps and valves. Its innovative design includes precision transducers and signal processing circuitry to accurately measure the flow of most liquids over a wide range of velocities.
RIF620
Price per Unit
| Qty | Unit price (Vat excluded) |
Unit price (Vat included) |
|---|---|---|
| 1 | €1,380.00 | €1,683.60 |
