RIL100 Immersion level transmitter

RIL100 Hydrostatic level transmitter suitable for water, diesel, leachate. For wells or tanks.
Measuring range to 600 mH2O
Process temperature -10...+85°C
Protection degree IP68
Atex approval Only safe zone

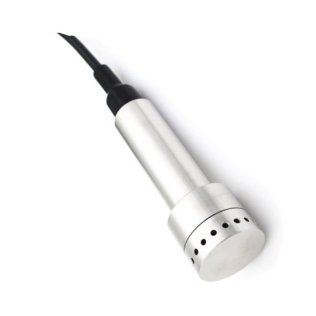

The RIL100 Hydrostatic Level Transmitter is a compact measuring device containing the electronic devices in the stainless steel probe.
For continuous measurement of the level of non-aggressive liquids, without impurities, in non-pressurized tanks, wells, wells, tanks.

The installation of the Level Transmitter is performed by letting the probe descend into the area to be measured (tanks, wells) and can remain hanging on the cable or lie down on the bottom.
The cable includes an air compensation system (capillary), therefore the connection must be made in the non-hermetic junction box.
In tanks where there is strong turbulence, it is preferable to place the probe inside a still pipe, behind the wall, or at least at the maximum possible distance from the source of turbulence.

When using a liquid other than water, it is necessary to request the calibration of the output based on the density of the liquid.

Benefits

  • Excellent resistance to shocks, overloads, shocks and erosion.
  • Efficient lightning protection, strong protection from electromagnetic interference.
  • High sensitivity and accuracy, high frequency response and long-term stability.

Price per Unit

€145.00(Vat excluded)
€176.90(Vat included)
Qty Unit price
(Vat excluded)
Unit price
(Vat included)
1 €145.00 €176.90
5 €124.00 €151.28
Availability
25 working days
Quantity
CONFIGURE THE PRODUCT

In this section you will find all the variants available for this model, improve your configuration with the drop-down menus below, select the desired quantity and click on "ADD TO CART or REQUEST A QUOTE"

The price displayed refers to a specific configuration and changes based on the variants selected.
The configuration follows an indicative order. Configure the product according to your needs.
