RIL160 Immersion level transmitter

RIL160 Hydrostatic level transmitter suitable for dirty water, waste water. For wells or tanks.
Measuring range up to 200 mH20
Process temperature -20...+70°C
Protection degree IP68
Atex approval Only safe zone
Specifically designed for wide use in the field of dirty water and waste water lifting stations.
The RIL160 Level Transmitter uses proven piezoresistive measurement technology in combination with Riels Instruments' most advanced microprocessor signal conditioning circuits, in order to offer maximum precision and reliability over a wide compensated temperature range.

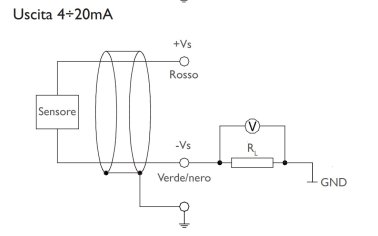

It is perfectly suitable for pump control applications that require Level Transmitters with standard 2-wire (4 ÷ 20 mA) or 3-wire (0 ÷ 10 V) output.
In normal configuration, the RIL160 is held in suspension within the liquid to be measured, by a standard cable with PUR sheath (PE, PTFE on request), which is self-supporting and is equipped with vent holes.
Upon request, Riels Instruments' enhanced lightning protection makes this transmitter ideal for installations in areas prone to chronic damage due to lightning-induced voltage transients.


  • Design of the membrane in anti-clogging function
  • Housing shell resistant to the aggression of chemical agents (AISI 316)
  • Reliability in lightning-prone applications

Price per Unit

€224.00(Vat excluded)
€273.28(Vat included)
Qty Unit price
(Vat excluded)
Unit price
(Vat included)
1 €224.00 €273.28
30 working days

In this section you will find all the variants available for this model, improve your configuration with the drop-down menus below, select the desired quantity and click on "ADD TO CART or REQUEST A QUOTE"

The price displayed refers to a specific configuration and changes based on the variants selected.
The configuration follows an indicative order. Configure the product according to your needs.
