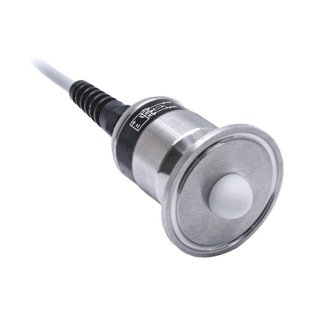

RIL700-1B Frequency scanning level switch

RIL700-1B Level switch suitable for liquid, pasty, food-grade, dirty, viscous and sticky fluids.
Measuring range Punctual detection
Process temperature -40...+105°C
Protection degree IP67
Atex approval on request

The RIL700-1B High-Frequency Level Sensor is designed for industrial use to detect the limits of liquid and viscous or sticky materials. The high-frequency level sensor can directly replace a vibrating level sensor or a capacitive level sensor.

It can be installed in metal or plastic tanks, pipes, filling tanks, sumps, etc.

It is primarily designed to be mounted on the wall of a tank or pipe, where the actual level detection takes place. The sensor operates in the high-frequency range, allowing reliable detection of material levels and eliminating deposits or foam on the electrode.
The sensor suppresses the influence of deposits from viscous materials (ketchup, yogurt, pastes, syrups, jams, creams, soap) as well as conductive adhesive products (detergents, alkalis, chemicals).

Furthermore, it can be used to differentiate a specific material from others - the "Media Window" function.
For example, it can differentiate oil from water and air, detect only beer foam and ignore beer and air, etc.

The following performances are available:

  • N - For normal atmospheres
  • Xi - Explosion-proof - intrinsically safe for hazardous (explosive) areas.
  • XiM - Explosion-proof - intrinsically safe for use in mines with the presence of methane or flammable dust (see technical specifications).

Price per Unit

€180.00(Vat excluded)
€219.60(Vat included)
Qty Unit price
(Vat excluded)
Unit price
(Vat included)
1 €180.00 €219.60
25 working days

In this section you will find all the variants available for this model, improve your configuration with the drop-down menus below, select the desired quantity and click on "ADD TO CART or REQUEST A QUOTE"

The price displayed refers to a specific configuration and changes based on the variants selected.
The configuration follows an indicative order. Configure the product according to your needs.
