RIL800N-21-G1-I-B-E100

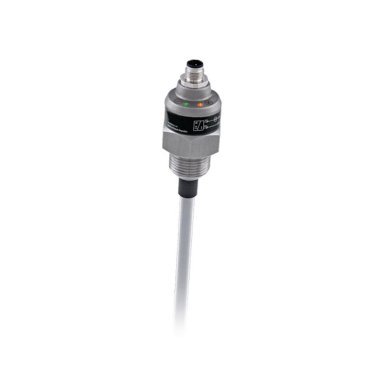

The Capacitive Level Transmitters RIL800-2X represent the ideal solution for continuous measurement of liquid levels within tanks, containers, wells, silos, and hoppers.
Their versatility makes them suitable for a wide range of applications, allowing for direct and precise installation.
A distinctive feature of these level transmitters is their ease of configuration. Using a magnetic pen, preferences can be set without the need to completely empty the tank. This saves time and money while ensuring optimal efficiency.
A strong point is their ability to perform linear measurements even in non-conductive containers or with irregular shapes.
Visual indication of the operating status and level, made possible by bright LEDs, adds further convenience and efficiency.
The wide range of electrical connection options, including connectors and cable glands, allows for total flexibility in installation. Moreover, the use of high-quality materials such as stainless steel for casings, electrodes, and reference tubes ensures durability and long-term resistance.
These devices consist of a housing with an electronic module and measuring electrodes. The electrodes can be rod-type or cable-type, depending on the requirements. The maximum length of the rod-type electrode is 2 meters, making it suitable for measuring water and other electrically conductive liquids. Depending on the coating with higher resistance to vapor and gas permeation (diffusion).
The RIL800-21 is available in various configurations, including options for high temperature and ATEX certification for explosion protection, thus adapting to different industrial needs.
- N – for non-explosive areas
- NT – high temperature
- Xi – explosion-proof – intrinsically safe for hazardous (explosive) areas
- XiM – explosion-proof – intrinsically safe for use in mines with the danger of methane or flammable dust presence (see technical specifications).
- XiT – high temperature for explosive environments
- XiMT – high temperature for mining environments
RIL800N-21-G1-I-B-E100
Price per Unit
| Qty | Unit price (Vat excluded) |
Unit price (Vat included) |
|---|---|---|
| 1 | €210.00 | €256.20 |
In this section you will find all the variants available for this model. Improve your configuration with the drop-down menus below, select the desired quantity and click ADD TO CART
The price displayed refers to a specific configuration and varies based on the options selected.
