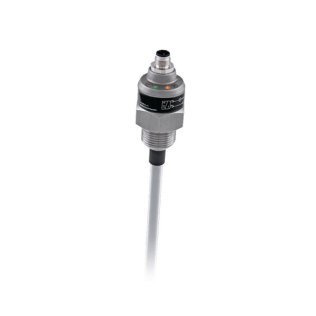

RIL800-50 Capacitive Level Transmitter

RIL800-50 Capacitive level transmitter suitable for bulk solids. Uncoated electrode. Up to 6 m.
Measuring range up to 6 m.
Process temperature -40...+200°C
Atex approval on request
Electrode type uncoated rope

The RIL800-50 Capacitive Level Transmitters represent the ideal solution for level measurement of bulk solids (e.g. cereals, sand, gravel, cement, etc.)

A distinguishing feature of these level transmitters is their ease of configuration.
By using a magnetic pen, you can set preferences without the need to completely empty the tank. This saves time and money, ensuring optimal efficiency.

A strong point is the ability to take linear measurements even in non-conductive or irregularly shaped containers.
Visual indication of operating status and level, made possible by bright LEDs, adds further convenience and efficiency.

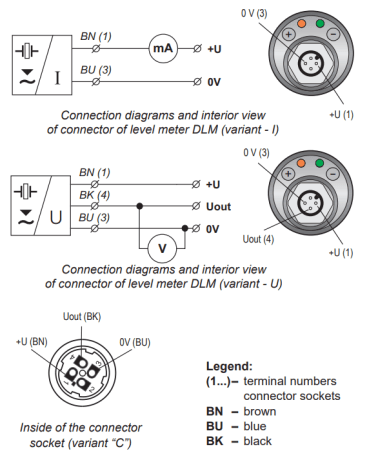

The wide range of electrical connection options, including connectors and cable glands, allows total flexibility in installation.
Furthermore, the use of high-quality materials, such as stainless steel for cases, electrodes and reference tubes, guarantees durability and resistance over time.

These devices consist of a housing with electronic module and measuring electrodes.
The electrodes can be bar or rope, depending on your needs. The maximum length of the rod electrode is 6 meters.

The RIL800-50 are available in various configurations, including options for high temperature, atex as protection against explosion, thus adapting to different industrial needs.

N – for non-explosive areas
NT – high temperature
Xi – explosion proof – intrinsically safe for hazardous (explosive) areas
XiM – explosion-proof – intrinsically safe for use in mines with danger of presence of methane or flammable dust (see technical specifications).
XiT – high temperature for explosive environments
XiMT – high temperature for mining environments
