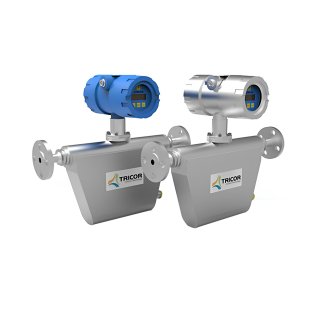

TCM-028K Coriolis mass flow meter

TCM-028K Coriolis mass flow meter

TCM-028K Coriolis mass flow meter for Hazardous Environments

Measuring range Up to 28.000 kg/h

Process temperature Up to 200°C

Protection degree IP65

Signal output Analog 4...20 mA + Pulses

Coriolis flow meters utilize the principle of tube resonance through which the fluid flows, enabling the measurement of the phase difference generated by the Coriolis force acting on the moving fluid.

The TCM-028K meter offers several advantages, including the capability to simultaneously measure flow, density, and temperature, enabling precise process control. Coriolis technology is not dependent on the specific properties of the fluid, making it suitable for a wide range of liquids and gases.

To complement this range of meters, the TCE 8000 external display is also available, which can be configured in a compact version or separate versions for wall-mounted or panel-mounted installation. Additionally, electronics can be provided with an ATEX certificate upon request.

ORDER CODE:
TCM-028K-AJ-SGSS-HZZS

GO TO PRODUCT CONFIGURATION

Price per Unit

€6,047.00(Vat excluded)

€7,377.34(Vat included)

Qty	Unit price (Vat excluded)	Unit price (Vat included)
1	€6,047.00	€7,377.34

Availability

35 working days

Quantity

Can't find the right configuration? Ask for a quote.

Print product sheet

CONFIGURE THE PRODUCT

In this section, you'll find all the available options for this model. Use the dropdown menus to select your preferred options: the price will automatically update based on your choices.

The configured code will appear in the box on the right as ORDER CODE.

When you're ready, click ADD TO CART to proceed with your purchase.

Voltage type

Version

Communication interface

External connections

Process connection type

Diameter process connection

Nominal pressure (PN)

Temperature range (if absent ask for quote)

Area of use

Product features
Principle of measurement	Coriolis
Informations measured	Temperature, Volumetric flow, Mass flow, Volume, Mass, Density
Detection type	Continuous measurement
Explosion protection	Safe zone
Version	Standard
Measurement type	With contact
Storage temperature	-40...+100°C
Flow max (liquid)	28000 kg/h
Flow min (liquid)	84 kg/h
Properties of the fluid	Viscous / Sticky
Installation position	Vertical, Horizontal
Flow direction	Bidirectional
Temperature range (if absent ask for quote)	-60…+100°C
Area of use	For non-explosive atmospheres
Details of the signal inputs and outputs
All signal outputs available	4...20 mA, Pulses
Signal Output Type	Digital and Analog
load resistance	< 620 Ω (24 V)
Communication interface	None
Output details	2 x Analog 4...20 mA + 1 x Pulses
Analog output functions	Volumetric flow, Mass flow, Temperature
Digital output functions	Volume, Mass, Portata Volumetrica, Mass flow
Analog output type	4...20 mA
Number of analog outputs	2
Maximum error of the analog output	±0.05 % of full scale
Number of digital outputs	1
Maximum pulse frequency	10.000 Hz (in TOTAL mode: 100 Hz)
External input functions	Pressure compensation
Registry features
Displayable units of measure	Litre, m³, m³/h, Kg, Tons [t], m³/min, m³/s, Kg/s, Kg/min, Kg/h, t/s, t/min, t/h, m³/day, Grams [g], Pounds, Onces [oz]
Display technology	LCD B/W
Number of lines that can be displayed	1
Register functions, line 1	Cumulative volume (resettable), Cumulative mass (resettable), Volumetric flow, Instantaneous temperature, Mass flow, Density, Pressure
Maximum displayable value (line 1)	9.999.999
Minimum displayable value	-999.999
Number of digits (line 1)	7
Electrical data
Voltage type	None
Type of electrical connection	M12 connector
Reverse polarity protection	Yes
Degree of protection	IP65
Insulation voltage	2500 V AC
External connections	Junction box in AISI 316L for separate display
Mechanical data
Process connection type	Flanged ASME B16.5
Diameter process connection	1" 1/2 - DN40
Nominal pressure (PN)	Class 150
Materials in contact with the measured fluid	AISI 316L (1,4404) - Stainless steel
Body material	AISI 316L (1,4404) - Stainless steel
Height	400 mm
Width	625 mm
Depth	80 mm
Pipe diameter	16 mm
Case material	AISI 316L (1,4404) - Stainless steel
Performance data
Accuracy	On flow measurement: ± 0.3% of the measured value On temperature measurement: ± 1°C ± 0.5% of the measurement On density measurement: ± 1.0 kg/m³
Repeatability	On the measurement of the flow of liquids: ± 0.05% of the measured value On gas flow measurement: ± 0.25% of the measured value On temperature measurement: ±0.2°C On density measurement: ± 0.5 kg/m³
Approvals
Standards and Certifications	Directive 2014/30/EU “Electromagnetic compatibility Directive”, Directive 2014/68/EU "Direttiva europea per le attrezzature a pressione"
CE omologation	Yes
Logistics
Contains batteries	No
country of origin	Germany
Customs Code	90261081
Gross weight	14,9 kg
Net weight	14,4 kg

Related products with similar features

TCM-0325 Coriolis mass flow meter for hazardous environments

Price €3,043.00

The TCM-0325 utilizes the Coriolis principle for measuring the mass flow rate of the fluid. Additionally, it is capable of providing certain indirect measurements, such as volumetric flow rate, through an integrated density sensor.

Measuring range Up to 325 kg/h
Process temperature Up to 200°C
Protection degree IP65
Signal output Analog 4...20 mA + Pulses

TCM-0650 Coriolis mass flow meter for hazardous environments

Price €3,122.00

The TCM-0650 utilizes the Coriolis principle to measure the mass flow rate of the fluid and can withstand pressures of up to 200 bar. Furthermore, it can provide indirect measurements such as volumetric flow rate due to its integrated density sensor.

Measuring range Up to 650 kg/h
Process temperature Up to 200°C
Protection degree IP65
Signal output Analog 4...20 mA + Pulses

TCM-1550 Coriolis mass flow meter for hazardous environments

Price €4,019.00

Thanks to the Coriolis principle, the TCM-1550 is capable of accurately measuring the mass flow rate of the fluid and can withstand pressures of up to 200 bar. During product configuration, it is possible to request it with an ATEX certification for explosive atmospheres in Zone 1 or Zone 2.

Measuring range Up to 1550 kg/h
Process temperature Up to 200°C
Protection degree IP65
Signal output Analog 4...20 mA + Pulses

TCM-3100 Coriolis mass flow meter for Hazardous Environments

Price €4,024.00

The TCM-3100 can withstand pressures of up to 200 bar and utilizes the Coriolis principle to accurately and reliably measure the mass flow rate of the fluid. Additionally, thanks to its integrated density sensor, indirect measurements such as volumetric flow rate can be obtained.

Measuring range Up to 3100 kg/h
Process temperature Up to 200°C
Protection degree IP65
Signal output Analog 4...20 mA + Pulses

TCM-5500 Coriolis mass flow meter for Hazardous Environments

Price €4,273.00

The TCM-5500 utilizes the Coriolis principle for measuring the mass flow rate of the fluid and can withstand pressures of up to 200 bar. The internal geometry of the instrument enables an accuracy of ±0.3% of the measured value.

Measuring range Up to 5500 kg/h
Process temperature Up to 200°C
Protection degree IP65
Signal output Analog 4...20 mA + Pulses

TCM-7900 Coriolis mass flow meter for Hazardous Environments

Price €4,296.00

The TCM-7900 utilizes the Coriolis principle for measuring the mass flow rate of the fluid. It can withstand pressures of up to 100 bar and offers an accuracy of ± 0.3% of the measured value. These features make the instrument ideal for dosing applications.

Measuring range Up to 7900 kg/h
Process temperature Up to 200°C
Protection degree IP65
Signal output Analog 4...20 mA + Pulses

TCE-8000 Signal transmitter for TCM meter range, also suitable for explosive atmospheres

Price €1,033.00

The TCE-8000 series provides configurable displays to meet various needs. For example, it offers options for wall mounting, panel mounting, as well as the more standard direct mounting on the instrument. Additionally, it is possible to request ATEx certifications.

Protection degree up to IP65
Signal output 4...20 mA + Pulse/Frequency
Atex approval on request
Mouting wall or panel
