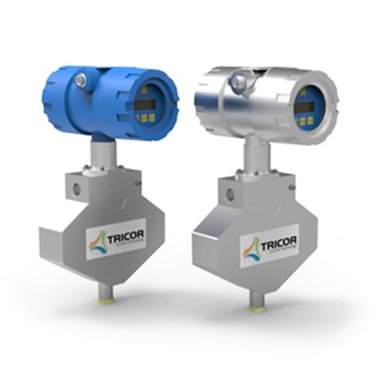

TCM-0650 Coriolis mass flow meter

TCM-0650 Coriolis mass flow meter

TCM-0650 Coriolis mass flow meter for hazardous environments

Measuring range Up to 650 kg/h

Process temperature Up to 200°C

Protection degree IP65

Signal output Analog 4...20 mA + Pulses

Coriolis flow meters utilize the principle of tube resonance through which the fluid flows. They detect the phase difference generated by the Coriolis force acting on the moving fluid.

The TCM-0650 meter offers numerous advantages, including the ability to simultaneously measure flow, density, and temperature, enabling precise process control. Furthermore, Coriolis technology is not dependent on fluid properties, making it suitable for a wide range of liquids and gases.

These meters can be combined with the external display of the TCE 8000 series, which can be configured in different versions such as compact, wall-mounted, or panel-mounted. Additionally, it is possible to request electronics with an ATEX certificate, ensuring compliance with safety standards.

ORDER CODE:
TCM-0650-AA-SGSS-HZZS

Price per Unit

€3,772.00(Vat excluded)

€4,601.84(Vat included)

Qty	Unit price (Vat excluded)	Unit price (Vat included)
1	€3,772.00	€4,601.84

Availability

30 working days

Quantity

Can't find the right configuration? Ask for a quote.

Print product sheet

CONFIGURE THE PRODUCT

In this section you will find all the variants available for this model. Improve your configuration with the drop-down menus below, select the desired quantity and click ADD TO CART

The price displayed refers to a specific configuration and varies based on the options selected.

The ordering of the variants is indicative: customize the configuration according to your needs.

Voltage type

Version

Communication interface

External connections

Process connection type

Diameter process connection

Nominal pressure (PN)

Temperature range (if absent ask for quote)

Area of use

Product features
Principle of measurement	Coriolis
Informations measured	Temperature, Volumetric flow, Mass flow, Volume, Mass, Density
Detection type	Continuous measurement
Measurable media	Water.
Version	Standard
Measurement type	With contact
Storage temperature	-40...+100°C
Flow max (liquid)	650 kg/h
Flow min (liquid)	1,95 kg/h
Properties of the fluid	Viscous / Sticky
Installation position	Vertical, Horizontal
Flow direction	Bidirectional
External connections	Junction box in AISI 316L for separate display
Temperature range	-60…+100°C
Area of use	For non-explosive atmospheres
Details of the signal inputs and outputs
All signal outputs available	4...20 mA, Pulses
Signal Output Type	Digital and Analog
load resistance	< 620 Ω (24 V)
Output details	2 x Analog 4...20 mA + 1 x Pulses
Analog output functions	Volumetric flow, Mass flow, Temperature
Digital output functions	Volume, Mass, Portata Volumetrica, Mass flow
Analog output type	4...20 mA
Number of analog outputs	2
Maximum error of the analog output	±0.05 % of full scale
Number of digital outputs	1
Maximum pulse frequency	10.000 Hz (in TOTAL mode: 100 Hz)
External input functions	Pressure compensation
Registry features
Displayable units of measure	Litre, m³, m³/h, Kg, Tons [t], m³/min, m³/s, Kg/s, Kg/min, Kg/h, t/s, t/min, t/h, m³/day, Grams [g], Pounds, Onces [oz]
Display technology	LCD B/W
Number of lines that can be displayed	1
Register functions, line 1	Cumulative volume (resettable), Cumulative mass (resettable), Volumetric flow, Instantaneous temperature, Mass flow, Density, Pressure
Maximum displayable value (line 1)	9.999.999
Minimum displayable value	-999.999
Number of digits (line 1)	7
Electrical data
Voltage type	None
Type of electrical connection	M12 connector
Reverse polarity protection	Yes
Degree of protection	IP65
Communication interface	None
Insulation voltage	2500 V AC
Mechanical data
Process connection type	Flanged ASME B16.5
Diameter process connection	1/2" - DN15
Nominal pressure (PN)	Class 150
Materials in contact with the measured fluid	AISI 316L (1,4404) - Stainless steel
Body material	AISI 316L (1,4404) - Stainless steel
Height	314 mm
Width	390 mm
Depth	60 mm
Pipe diameter	4 mm
Case material	AISI 316L (1,4404) - Stainless steel
Performance data
Accuracy	On flow measurement: ± 0.3% of the measured value On temperature measurement: ± 1°C ± 0.5% of the measurement On density measurement: ± 1.0 kg/m³
Repeatability	On the measurement of the flow of liquids: ± 0.05% of the measured value On gas flow measurement: ± 0.25% of the measured value On temperature measurement: ±0.2°C On density measurement: ± 0.5 kg/m³
Approvals
Standards and Certifications	Directive 2014/30/EU “Electromagnetic compatibility Directive”, Directive 2014/68/EU "Direttiva europea per le attrezzature a pressione"
CE omologation	Yes
Logistics
Contains batteries	No
country of origin	Germany
Customs Code	90261081
Gross weight	8,8 kg
Net weight	8,3 kg
