TJET Digital manometer datalogger

TJET Pressure gauge with datalogger with recording function. Up to 3000 bar
Measuring range up to 3000 Bar
Process temperature -10…+50°C
Atex approval Only safe zone
Accuracy 0,2% (0,1% on request)

This manometer with recorder function, powered by a rechargeable Li-Ion battery through a normal USB port or through a dedicated power supply, is full of many features.
It replaces chart recorders and in the version and with the wireless option it can reach a distance of 100 m in an open area.

Here are some of the main features

  • Temperature measurement
  • Programmable resolution, digital filter and baud
  • Analog indication of the pressure always active (Bar Graph)
  • ZERO and PEAK functions (positive and vacuum pressure)
  • Wireless measurement transmission (option)
  • Switch test function for testing pressure switches (option)
  • VACUUM calibration (option)
  • USB output
  • Key lock function
  • Display backlight

In the programming menu, accessible from the keyboard, it is possible to adjust various functions such as the digital filter which allows the measurement to be kept stable even in the presence of unstable pressures, the display resolution which allows the measurement to be increased in pre-established steps of 1, 2, 5, 10 and the unit of measurement which can be changed to mbar, bar, kPa, MPa, psi, kg/cm2, mHg, mmHg, mH2O and mH2O.

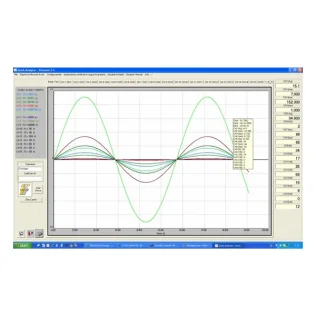

The communication via USB and Wireless port (optional) and the functionality of the Datalogger make it particularly suitable for applications where it is necessary to process the acquired measurements on a PC.
The sensor is made entirely of monolithic stainless steel to ensure high stability over time even in the presence of highly dynamic pressures.
By selecting the TEMPERATURE reading it is possible to visualize on the display the temperature of the fluid which is in contact with the pressure sensor.

Supplied accessories

  • COVER in shock resistant silicone
  • Transport case
  • USB power supply (5VDC @700mA)
  • USB cable
  • CD containing MANUAL and USB DRIVER
  • No. 2 bite cones only for high pressure gauges from 1000 bar to 3000 bar.

Wireless Applications

For wireless communication you can use one of 5 possible reception systems.
a) WINWIMOD software + RXWIMOD reception module with USB interface (one per system) suitable for communication with a PC and which allows it to be connected to up to 32 RIB450 JET pressure gauges or other wireless devices.
b) PC + reception module with RXWIMOD-USB interface, equipped with a simple communication protocol and which allows a point to point connection with a TJET pressure gauge. Suitable solution for those wishing to develop dedicated software.
c) WIMP2plus: panel indicator with wireless communication to manage 1, 2, 3 or 4 TJET pressure gauges simultaneously.
d) RXWIMOD-RS232C: Reception module with RS232C interface for point to point communication.
Suitable solution for those who want to interface the TJET pressure gauge with a PLC or dedicated electronic systems.
e) WISTAR handheld receiver which allows you to connect up to 4 TJET pressure gauges at the same time. Solution suitable for applications where the operator can change his workstation.

ORDER CODE:
TJET-A-0B5

Price per Unit

€385.00(Vat excluded)
€469.70(Vat included)
Qty Unit price
(Vat excluded)
Unit price
(Vat included)
1 €385.00 €469.70
Availability
25 working days
Quantity
CONFIGURE THE PRODUCT

In this section you will find all the variants available for this model, improve your configuration with the drop-down menus below, select the desired quantity and click on "ADD TO CART or REQUEST A QUOTE"

The price displayed refers to a specific configuration and changes based on the variants selected.
The configuration follows an indicative order. Configure the product according to your needs.
