VZO-08-PVDF Oval gear flow meter - 82201116.01

VZO-08-PVDF Oval gear flow meter - 82201116.01

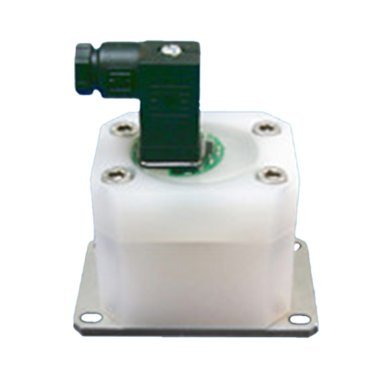

VZO-08-PVDF Oval gear flow meter for aggressive liquids, alkaline liquids, acidic liquids

Measuring range 0,08...1,8 l/min

Process temperature -10...+65°C

Signal output Push-pull NPN/PNP - 200 p/lt

Process pressure -0,7...10 bar

Thanks to the EPDM seals, the ECTFE impeller and the PVDF body of the instrument, the VZO gear sensor can be used to monitor the flow rates of aggressive, alkaline and acid liquids.

The volumetric sensor works in a temperature range from -10 °C up to 65 °C and withstands a maximum pressure of 10 bar. This instrument is capable of processing up to 1.8 l/min.

Repeatability of ±0.5% and accuracy of ±1% can be improved by performing a field calibration by changing the calibration factor.

The sensor is powered at 24 Vdc and the output signal is NPN type.

For use, a close-mesh filter of approximately 200 mesh is recommended to avoid compromising the internal helix and it is essential to maintain straight sections before and after the installation of the sensor to ensure accuracy and repeatability.

ORDER CODE:
82201116.01

Price per Unit

€368.00(Vat excluded)

€448.96(Vat included)

Qty	Unit price (Vat excluded)	Unit price (Vat included)
1	€368.00	€448.96

Availability

25 working days

Quantity

Request dimensioning and quote

Print product sheet

Product features
Principle of measurement	Gear flowsensor
Informations measured	Flow.
Detection type	Continuous measurement
Measurable media	Aggressive Liquids, Alkalis liquids, Acid liquids, (the indications on liquids are indicative and vary with the configuration of the product)
Explosion protection	Safe zone
Minimum process fluid temperature	-10 °C
Maximum process fluid temperature	65 °C
Minimum process pressure	-0,7 Bar
Maximum process pressure	10 Bar
Measurement type	With contact
Ambient temperature	-10...+65°C
Sensor type	Hall-effect sensor
Overpressure	20 Bar
Flow max (liquid)	1,8 L/min
Flow min (liquid)	0,08 L/min
Properties of the fluid	Aggressive
Installation position	Vertical, Horizontal
Flow direction	Unidirectional
Details of the signal inputs and outputs
Signal Output Type	Pulse/frequency
Pulse factor	200 imp/L
Electrical data
Voltage type	24 Vdc

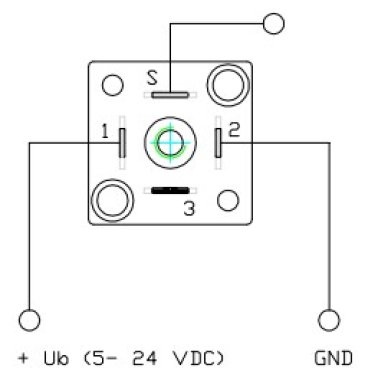

Type of electrical connection	Connettore GDSN 207 2 pin + Ground
Reverse polarity protection	No
Status LED	None
Max current consumption	0,011 A
Operating voltage	5...24 Vdc
Mechanical data
Process connection type	Threaded BSP(F)
Diameter process connection	1/4" - DN6
Nominal pressure (PN)	PN10
Materials in contact with the measured fluid	CERAMIC - Ceramics, ECTFE (HALAR®) - Fluoropolymer, EPDM - propilene Ethylene, PEEK - Polyethere therketone, PVDF (KYNAR®) - Polyvinylidene fluoride
Seal materials	EPDM - propilene Ethylene
Body material	PVDF (KYNAR®) - Polyvinylidene fluoride

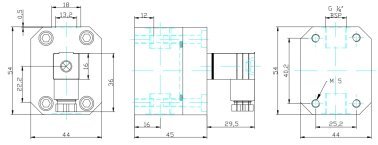

Height	74,5 mm
Width	54 mm
Depth	44 mm
Bearings materials	PEEK - Polyethere therketone
Axle/shaft materials	CERAMIC - Ceramics
Material of the gears/pistons	ECTFE (HALAR®) - Fluoropolymer
Performance data
Accuracy	± 2% Full scale
Repeatability	± 0,5% Full scale
Maximum viscosity of the measured fluid	200 mPas
Minimum viscosity of the measured fluid	1 mPas
Approvals
Naval approvals	None
Food / pharmaceutical approvals	None
Atex approvals	None
Standards and Certifications	RoHS, Directive 2014/35/EU “Low voltage Directive”, Directive 2014/30/EU “Electromagnetic compatibility Directive”
EMC applied harmonized standards	EN 61326 (For industrial applications)
CE omologation	Yes
Low voltage applied harmonized standards	EN 61010-1: 2010
Rohs applied harmonized standards	EN IEC 63000:2018
Logistics
Type of packaging	Carton BOX
Contains batteries	No
country of origin	Germany
Customs Code	90261021
Gross weight	0,47 kg
Net weight	0,17 kg
Packaging volume	0,007 m³
Packing length	26 cm
Packaging width	21 cm
Packaging depth	13 cm
