VZB-5-PP Oval gear flow meter - 96010038

VZB-5-PP Oval gear flow meter - 96010038

VZB-5-PP Oval gear flow meter for aggressive liquids

ORDER CODE:
96010038

Technical specifications based on the configuration

Measuring range 0,1...5,0 l/min

Process temperature -10...+80°C

Signal output PNP - 450 p/lt

Process pressure -0,8...16 bar

The VZB gear sensor, thanks to the FKM seals and the impeller torque plus the body of the PP instrument, can be used in monitoring the flow rates of aggressive liquids.

The volumetric sensor works in a temperature range from -10 °C up to 80 °C and withstands a maximum pressure of 16 bar. This instrument is capable of processing up to 5 l/min.

Repeatability of ±0.5% and accuracy of ±1% can be improved by performing a field calibration by changing the calibration factor.

The sensor is powered at 24 Vdc and the output signal is PNP type which makes it directly connectable to a PLC

For use, a close-mesh filter of approximately 200 mesh is recommended to avoid compromising the internal helix and it is essential to maintain straight sections before and after the installation of the sensor to ensure accuracy and repeatability.

ORDER CODE:
96010038

Price per Unit

€632.00(Vat excluded)

€771.04(Vat included)

Qty	Unit price (Vat excluded)	Unit price (Vat included)
1	€632.00	€771.04

Availability

25 working days

Quantity

Can't find the right configuration? Ask for a quote.

Print product sheet

Product features
Principle of measurement	Gear flowsensor
Informations measured	Flow.
Detection type	Continuous measurement
Measurable media	Aggressive Liquids, (the indications on liquids are indicative and vary with the configuration of the product)
Explosion protection	Safe zone
Minimum process fluid temperature	-10 °C
Maximum process fluid temperature	80 °C
Minimum process pressure	-0,8 Bar
Maximum process pressure	16 Bar
Measurement type	With contact
Ambient temperature	-10...+80°C
Sensor type	Hall-effect sensor
Overpressure	30 Bar
Flow max (liquid)	5 L/min
Flow min (liquid)	0,1 L/min
Properties of the fluid	Viscous / Sticky, Aggressive
Installation position	Vertical, Horizontal
Flow direction	Unidirectional
Details of the signal inputs and outputs
All signal outputs available	PNP pulses
Signal Output Type	Pulse/frequency
Pulse factor	450 imp/L
Electrical data
Voltage type	24 Vdc

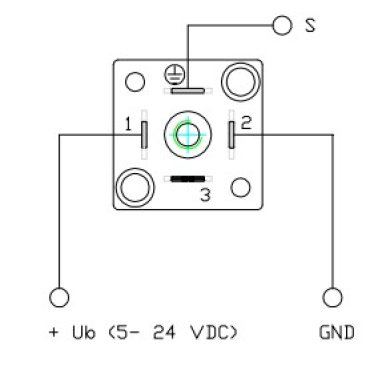

Type of electrical connection	Connettore GDSN 207 2 pin + Ground
Reverse polarity protection	No
Status LED	None
Max current consumption	0,025 A
Operating voltage	5...24 Vdc
Mechanical data
Process connection type	Threaded BSP(F)
Diameter process connection	1/4" - DN6
Nominal pressure (PN)	PN16
Materials in contact with the measured fluid	AISI 316L (1,4404) - Stainless steel, FKM (VITON®) - Copolymer of vivilidene fluoride, PP - Polypropylene, PTFE (TEFLON®) - Polytetrafluoroethylene
Seal materials	FKM (VITON®) - Copolymer of vivilidene fluoride
Body material	PP - Polypropylene
Height	83,5 mm
Width	110 mm
Depth	80 mm
Bearings materials	PTFE (TEFLON®) - Polytetrafluoroethylene
Axle/shaft materials	AISI 316L (1,4404) - Stainless steel
Material of the gears/pistons	PP - Polypropylene
Performance data
Accuracy	± 1% Full scale
Repeatability	± 0,5% Full scale
Maximum viscosity of the measured fluid	3000 mPas
Minimum viscosity of the measured fluid	1 mPas
Approvals
Naval approvals	None
Food / pharmaceutical approvals	None
Atex approvals	None
Standards and Certifications	RoHS, Directive 2014/35/EU “Low voltage Directive”, Directive 2014/30/EU “Electromagnetic compatibility Directive”
EMC applied harmonized standards	EN 61326 (For industrial applications)
CE omologation	Yes
Low voltage applied harmonized standards	EN 61010-1: 2010
Rohs applied harmonized standards	EN IEC 63000:2018
Logistics
Type of packaging	Carton BOX
Contains batteries	No
country of origin	Germany
Customs Code	90261021
Gross weight	0,77 kg
Net weight	0,47 kg
Packaging volume	0,007 m³
Packing length	26 cm
Packaging width	21 cm
Packaging depth	13 cm
