97478469

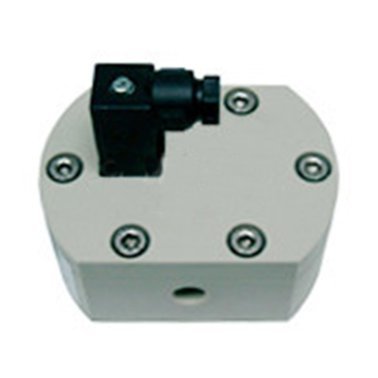

The VZB gear sensor, thanks to the FKM gaskets and the impeller couple plus the body of the PP instrument, can be used in monitoring the flow rates of aggressive, alkaline and acid liquids.
The volumetric sensor works in a temperature range from -10 °C up to 80 °C and withstands a maximum pressure of 10 bar. This instrument is capable of processing up to 35 l/min.
Repeatability of ±0.5% and accuracy of ±1% can be improved by performing a field calibration by changing the calibration factor.

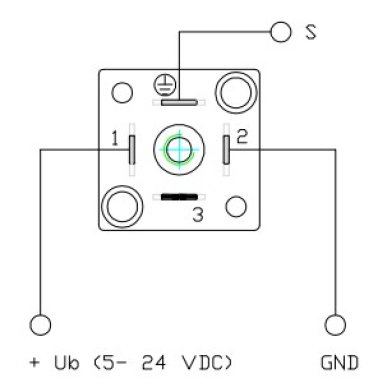

The sensor is powered at 24 Vdc and the output signal is PNP type which makes it directly connectable to a PLC
For use, a close-mesh filter of approximately 200 mesh is recommended to avoid compromising the internal helix and it is essential to maintain straight sections before and after the installation of the sensor to ensure accuracy and repeatability.
97478469
Price per Unit
| Qty | Unit price (Vat excluded) |
Unit price (Vat included) |
|---|---|---|
| 1 | €835.00 | €1,018.70 |
