VZB-10-ALU Oval gear flow meter - 97478508

VZB-10-ALU for diesel fuel, hydraulic fluid, vegetable oils
Measuring range 0,1...10,0 l/min
Process temperature -20...+80°C
Signal output PNP - 450 p/lt
Process pressure -0,8...110 bar

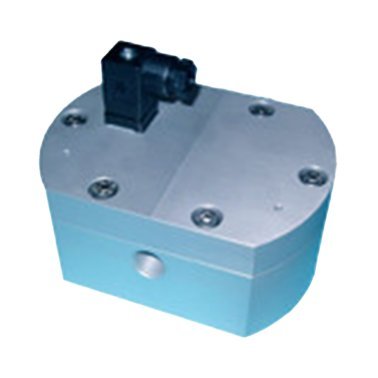

Thanks to the FKM seals, the POM impeller and the aluminum body of the instrument, the VZB  gear sensor can be used to monitor the flow of diesel, hydraulic fluids and vegetable oils.

The volumetric sensor works in a temperature range from -20 °C up to 80 °C and withstands a maximum pressure of 110 bar. This instrument is capable of processing up to 10 l/min.

Repeatability of ±0.5% and accuracy of ±1% can be improved by performing a calibration in the field by changing the calibration factor.

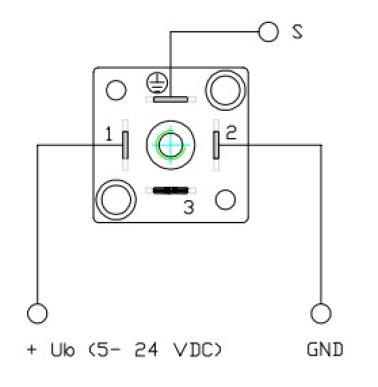

The sensor is powered at 24 Vdc and the output signal is PNP type which makes it directly connectable to a PLC.

For use, a close-mesh filter of approximately 200 mesh is recommended to avoid compromising the internal helix and it is essential to maintain straight sections before and after the installation of the sensor to ensure accuracy and repeatability.
ORDER CODE:
97478508

Price per Unit

€444.00(Vat excluded)
€541.68(Vat included)
Qty Unit price
(Vat excluded)
Unit price
(Vat included)
1 €444.00 €541.68
Availability
25 working days
