VZB-10-PP Oval gear flow meter - 97478638

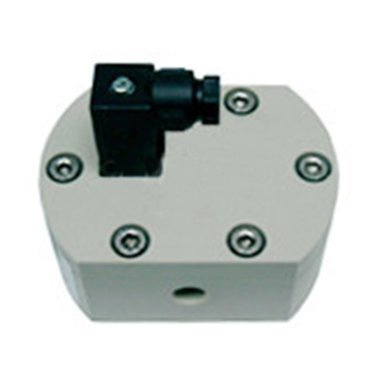

VZB-10-PP Oval gear flow meter for aggressive liquids
Measuring range 0,1...10,0 l/min
Process temperature -20...95°C
Signal output PNP - 445 p/lt
Process pressure -0,8...10 bar

The VZB  gear sensor, thanks to the FKM seals and the impeller torque plus the body of the PP instrument, can be used in monitoring the flow rates of aggressive liquids.

The volumetric sensor works in a temperature range from -20 °C up to 95 °C and withstands a maximum pressure of 10 bar. This instrument is capable of processing up to 10 l/min.

Repeatability of ±0.5% and accuracy of ±1% can be improved by performing a field calibration by changing the calibration factor.

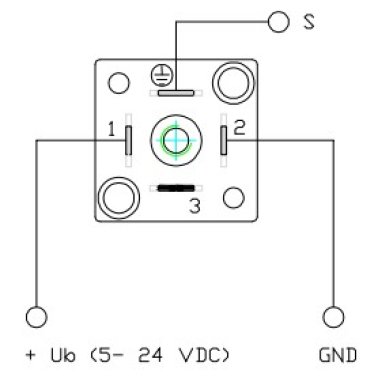

The sensor is powered at 24 Vdc and the output signal is PNP type which makes it directly connectable to a PLC

For use, a close-mesh filter of approximately 200 mesh is recommended to avoid compromising the internal helix and it is essential to maintain straight sections before and after the installation of the sensor to ensure accuracy and repeatability.

ORDER CODE:
97478638

Price per Unit

€422.00(Vat excluded)
€514.84(Vat included)
Qty Unit price
(Vat excluded)
Unit price
(Vat included)
1 €422.00 €514.84
Availability
25 working days
