VZS-007-ALU Oval gear flow meter - 97478770

VZS-007-ALU Oval gear flow meter for diesel, diesel, vegetable oils, water, oils
Measuring range 0,07...5,0 l/min
Process temperature -25...+100°C
Signal output PNP - 1800 p/lt
Process pressure -0,8...30 bar

Thanks to the FKM seals, the PPS impeller and the aluminum body of the instrument, the VZS  gear sensor can be used to monitor the flow of diesel, vegetable oils, oils and water.

The volumetric sensor works in a temperature range from -25 ° C up to 100 ° C and withstands a maximum pressure of 30 bar. This instrument is capable of processing up to 5 l / min.

Repeatability of ±0.5% and accuracy of ±1% can be improved by performing a field calibration by changing the calibration factor.

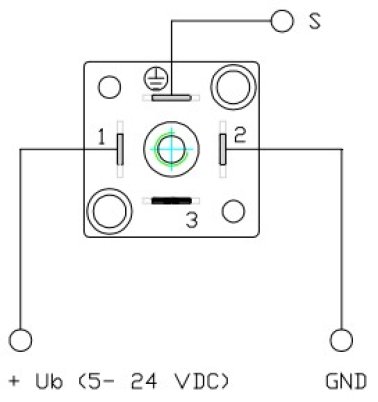

The sensor is powered at 24 Vdc and the output signal is PNP type which makes it directly connectable to a PLC

For use, a close-mesh filter of approximately 200 mesh is recommended to avoid compromising the internal helix and it is essential to maintain straight sections before and after the installation of the sensor to ensure accuracy and repeatability.

ORDER CODE:
97478770

Price per Unit

€278.00(Vat excluded)
€339.16(Vat included)
Qty Unit price
(Vat excluded)
Unit price
(Vat included)
1 €278.00 €339.16
Availability
25 working days
Quantity
