PFG05 Rotary level indicator

PFG05 Rotating level indicator for powdery or granular solids
Measuring range up to 3 m
Process temperature -20...+70°C
Protection degree IP65
Atex approval present

The PFG05 rotary Level Switches are suitable for controlling a level threshold of solids.
The rotary level switch is a sturdy and reliable device, particularly suitable for heavy working conditions and continuous rhythms.

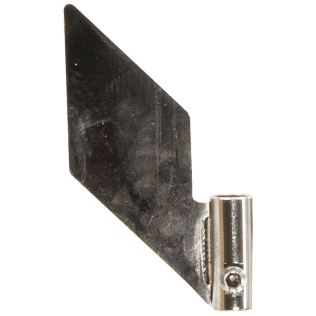

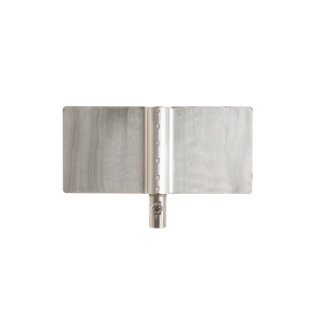

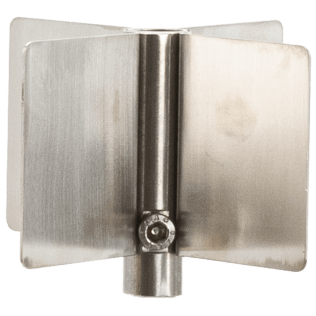

The detection is obtained by checking the rotation of a propeller positioned inside the tank and driven by a synchronous motor.
In the absence of material, the propeller rotates.
The presence of material around the propeller slows its rotation causing the switching of the working contact.
A second contact switches off the motor supply voltage.
When the level of the product drops, the propeller is released and the motor, powered again, puts it back in motion.
The rotary level indicator can be installed on the side wall of the tank or from above.

Price per Unit

€141.00(Vat excluded)
€172.02(Vat included)
Qty Unit price
(Vat excluded)
Unit price
(Vat included)
1 €141.00 €172.02

In this section you will find all the variants available for this model, improve your configuration with the drop-down menus below, select the desired quantity and click on "ADD TO CART or REQUEST A QUOTE"

The price displayed refers to a specific configuration and changes based on the variants selected.
The configuration follows an indicative order. Configure the product according to your needs.
