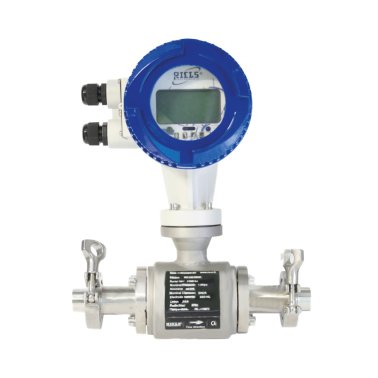

RIF120 Electromagnetic flow meter

RIF120 Stainless Steel Electromagnetic Flow Meter for Conductive Liquids
Measuring range 0...15 m/s
Protection degree IP65 or IP68
Signal output analog + pulses
Process pressure up to 16 bar

The RIF120 is an electromagnetic flow meter that utilizes Faraday's principle to measure the velocity of the liquid and convert it into a signal proportional to the flow.

Among its advantages are good precision, with a maximum deviation of ±0.5% from the measured value, complete indifference to the viscosity of the fluid, minimal pressure loss, and the ability to measure foamy liquids and those with suspended solids.

Electronic Flow Converter CV010

It can be supplied in the compact version connected directly to the body or in the separate version connected to the body with a special cable of minimum length 10 meters.

The converter displays the instantaneous flow and has a positive totalizer, a negative one and a net totalizer. It is possible to set a minimum or maximum flow threshold alarm.

Auxiliary functions:

  • Empty tube: this alarm intervenes in the absence of liquid or when its conductivity is less than 20 µS/cm.
  • System alarm: intervenes in case of system anomalies such as problems with the coils or electrodes of the meter.

The outputs available to the converter are:

  • An analog output 4…20mA to retransmit the instantaneous flow;
  • A frequency output used to retransmit the totalizer;
  • You can choose Modbus RS485 communication or the HART protocol.

The features and benefits of this instrument make it suitable for applications such as:

  • Wastewater and municipal water treatment
  • Metallurgical industries
  • Paper mills
  • Petrochemical plants
  • Chemical product monitoring

Available electrode materials include:
  • AISI316L: Stainless steel suitable for use with mildly corrosive liquids, widely used in petrochemical, chemical, and carbamide industries.
  • Hastelloy B: Resistant to hydrochloric acids at temperatures below the boiling point and oxidizing acids.
  • Hastelloy C: Exceptional resistance to oxidizing salt solutions and acids, such as Fe+++, Cu++, and nitric acids.
  • Titanium: Resistant to corrosive liquids like seawater and chloride and hypochlorite salts, but incompatible with highly concentrated sulfuric and hydrochloric acid solutions.
  • Tantalum: High resistance to corrosive liquids, perfect for chemical-pharmaceutical industries.
  • Platinum-Iridium: Applicable to all chemical media except ammonium salts and Fortis.
  • Stainless steel covered with tungsten carbide.

Price per Unit

€1,710.00(Vat excluded)
€2,086.20(Vat included)
Qty Unit price
(Vat excluded)
Unit price
(Vat included)
1 €1,710.00 €2,086.20
Availability
25 working days
Quantity
CONFIGURE THE PRODUCT

In this section you will find all the variants available for this model, improve your configuration with the drop-down menus below, select the desired quantity and click on "ADD TO CART or REQUEST A QUOTE"

The price displayed refers to a specific configuration and changes based on the variants selected.
The configuration follows an indicative order. Configure the product according to your needs.
