RIF107 Electromagnetic flow meter

RIF107 Electromagnetic flow meter

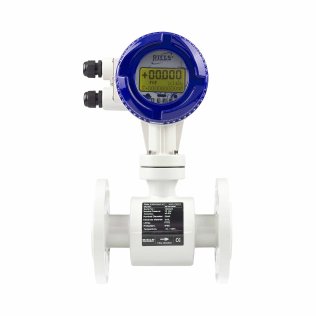

RIF107 Battery flanged electromagnetic flow meter for conductive liquids

Measuring range 0...15 m/s

Process temperature up to 130°C

Signal output NPN pulses

Process pressure up to 64 bar

The RIF107 is an electromagnetic flow meter that utilizes Faraday's principle to measure the velocity of the liquid and convert it into a signal proportional to the flow.

Among its advantages are good precision, with a maximum deviation of ±0.5% from the measured value, complete indifference to the viscosity of the fluid, minimal pressure loss, and the ability to measure foamy liquids and those with suspended solids.

Electronic Flow Converter CV030

It can be supplied in the compact version connected directly to the body or in the separate version connected to the body with a special cable of minimum length 10 meters.

The converter displays the instantaneous flow and has a positive totalizer, a negative one and a net totalizer.

The converter is powered by a 3.6V battery and has a variable autonomy from 3 to 8 years. A variant with a 24Vdc auxiliary power supply is available.

The outputs available to the converter are:

An impulse output to retransmit the totalizer that does not require external power.
An analog output 4…20mA to retransmit the instantaneous flow, usable only if the converter is powered at 24Vdc.

The communication protocol is Modbus RS485.

The features and benefits of this instrument make it suitable for applications such as:

Wastewater and municipal water treatment
Metallurgical industries
Paper mills
Petrochemical plants
Chemical product monitoring

Available electrode materials include:

AISI316L: Stainless steel suitable for use with mildly corrosive liquids, widely used in petrochemical, chemical, and carbamide industries.
Hastelloy B: Resistant to hydrochloric acids at temperatures below the boiling point and oxidizing acids.
Hastelloy C: Exceptional resistance to oxidizing salt solutions and acids, such as Fe+++, Cu++, and nitric acids.
Titanium: Resistant to corrosive liquids like seawater and chloride and hypochlorite salts, but incompatible with highly concentrated sulfuric and hydrochloric acid solutions.
Tantalum: High resistance to corrosive liquids, perfect for chemical-pharmaceutical industries.
Platinum-Iridium: Applicable to all chemical media except ammonium salts and Fortis.
Stainless steel covered with tungsten carbide.

ORDER CODE:
RIF107-0015-PN16-CS-2-316-CV030-DC-5-W-8

GO TO PRODUCT CONFIGURATION

Price per Unit

€1,340.00(Vat excluded)

€1,634.80(Vat included)

Qty	Unit price (Vat excluded)	Unit price (Vat included)
1	€1,340.00	€1,634.80

Availability

25 working days

Quantity

Can't find the right configuration? Ask for a quote.

Print product sheet

CONFIGURE THE PRODUCT

In this section, you'll find all the available options for this model. Use the dropdown menus to select your preferred options: the price will automatically update based on your choices.

The configured code will appear in the box on the right as ORDER CODE.

When you're ready, click ADD TO CART to proceed with your purchase.

Voltage type

Degree of protection

Accuracy

Body material

Communication protocol

Diameter process connection

Nominal pressure (PN)

Length of the connecting cable

Lining material

Electrodes material

Product features
Principle of measurement	Electromagnetic
Informations measured	Volumetric flow, Volume, Fluid speed
Detection type	Continuous measurement
Measurable media	Leachate, Beverages, Chlorine Water, Milk, Potash, Rainwater (acidic), Water., Aggressive Liquids, Wine, Liquids with conductivity> 20µS/cm
Documentation included	English instructions manual, Italian instructions manual, Test report
Explosion protection	Safe zone
Minimum process fluid temperature	-20 °C
Maximum process fluid temperature	130 °C
Process environment RH (non-condensing)	100 %rh
Measurement type	With contact
Ambient temperature	-25...+60°C
Properties of the fluid	Viscous / Sticky, Aggressive, Abrasive, Foamy, Presence of suspended solids
Zero point calibration	Yes
Flow direction	Bidirectional
Minimum conductivity of the fluid	20 µS/cm
Flow rate at 0,5 m/s	0,318 m³/h
Flow rate at 1 m/s	0,636 m³/h
Flow rate at 4 m/s	2,543 m³/h
Flow rate at 15 m/s	9,538 m³/h
Flow rate at 0,1 m/s	0,064 m³/h
Flow rate at 0,2 m/s	0,127 m³/h
Flow rate at 10 m/s	6,359 m³/h
Flow rate at 12 m/s	7,63 m³/h
Details of the signal inputs and outputs
All signal outputs available	NPN Pulses
Signal Output Type	Pulse/frequency
Digital output functions	Volume
Digital output type	Relay - pulse
Number of digital outputs	1
Maximum pulse frequency	5000 Hz
Type of output in frequency	In frequency
Number of frequency outputs	1
Frequency range	0...5000 Hz
Maximum current output	350 mA
Registry features
Displayable units of measure	Litre, m³, m³/h, L/min, L/s, L/h, m³/min, m³/s
Display	Yes
Display version	Electronic
Display technology	LCD B/W
Touchscreen	No
Display languages	Italian, English
Number of lines that can be displayed	3
Register functions, line 1	Volumetric flow
Register functions, line 2	Unit of measure
Register functions, line 3	Cumulative volume (resettable), Alarm value, Fluid speed, Percentage flow value, Vacuum report, Unit of measure
Maximum displayable value (line 1)
Maximum displayable value (line 3)
Minimum displayable value	0,01
Number of digits (line 1)
Number of digits (line 3)
Electrical data
Voltage type	24 Vdc
Reverse polarity protection	Yes
Degree of protection	IP68
Length of the connecting cable	10 m
Maximum power consumption	20 W
Communication protocol	Modbus RTU
Operating voltage	20…36 Vdc
Excitation current	125 mA
Converter	Separate \| Battery-powered, MODBUS, 4…20 mA and pulses
Mechanical data
Process connection type	Flanged UNI EN 1092-1
Diameter process connection	1/2" - DN15
Nominal pressure (PN)	PN16
Materials in contact with the measured fluid	AISI 316L (1,4404) - Stainless steel, PTFE (TEFLON®) - Polytetrafluoroethylene
Body material	AISI - Carbon steel
Height	220 mm
Width	200 mm
Depth	95 mm
Lining material	PTFE (TEFLON®) - Polytetrafluoroethylene
Electrodes material	AISI316L
Performance data
Accuracy	±0,5% Full scale
Approvals
Standards and Certifications	RoHS, Directive 2014/35/EU “Low voltage Directive”, Directive 2014/30/EU “Electromagnetic compatibility Directive”
EMC applied harmonized standards	EN 61326 (For industrial applications)
CE omologation	Yes
Low voltage applied harmonized standards	EN 61010-1: 2010
Rohs applied harmonized standards	EN IEC 63000:2018
Logistics
Type of packaging	Carton BOX
Contains batteries	No
country of origin	Italy
Customs Code	90261021
Gross weight	9 kg
Net weight	8 kg
Packaging volume	0,036 m³
Packing length	40 cm
Packaging width	30 cm
Packaging depth	30 cm

Attachment	Format	Size
Datasheet (Italian)	pdf	860.55 KB	Download
Instruction manual in Italian	pdf	1.32 MB	Download
Instruction manual in English	pdf	2.35 MB	Download
