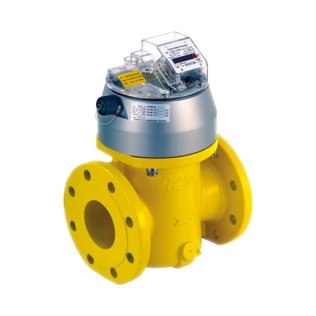

TRZ Turbine gas meters

TRZ Radial turbine fiscal gas meters for natural gas
Measuring range up to 650 m³/h
Process temperature -10...+60°C
Signal output pulses
Process pressure up to 6 bar

The radial turbine measuring principle represents an extremely versatile and reliable method used to determine the volumetric flow rate of gas. Due to its configuration, this instrument offers a wide range of possibilities, allowing the measurement of flow rates ranging from 5 to 650 m³/h.

To generate an accurate and reliable output signal, the device can produce low-frequency pulses using a reed sensor or high-frequency pulses using a NAMUR sensor.

Installation of this device is easy due to its connection to the process via a flange in sizes DN 50, DN 80 and DN 100, or via G 2" threads, which facilitates integration with existing systems.

An additional advantage is that the instrument can be equipped with an inertial brake, the purpose of which is to limit the speed of rotation of the turbine, ensuring control of the inertia of the gas flow through it. This mechanism prevents excessively rapid turbine rotations, allowing more accurate measurement of the volumetric flow.

In addition, allTRZ meters have MID TCM 143/13-5110 certification, which grants them an approval to perform measurements in fiscal applications.

Price per Unit

€1,455.00(Vat excluded)
€1,775.10(Vat included)
Qty Unit price
(Vat excluded)
Unit price
(Vat included)
1 €1,455.00 €1,775.10
35 working days

In this section you will find all the variants available for this model, improve your configuration with the drop-down menus below, select the desired quantity and click on "ADD TO CART or REQUEST A QUOTE"

The price displayed refers to a specific configuration and changes based on the variants selected.
The configuration follows an indicative order. Configure the product according to your needs.
