UG-H Deformable-walled gas meters

UG-H Deformable-walled gas meters

UG-H High flow rate gas meters with deformable wall side connection

Measuring range 0,4...100 m³/h

Process temperature up to 55°C

Signal output low frequency pulses

Process pressure up to 0,5 barR

The new generation of UG-H deformable-wall gas meters combines metrological accuracy, stability and reliability, and protection against fraud, in a single instrument. The instrument case made of galvanized steel, is able is designed to continuously withstand relative pressure up to 0.5 bar. These meters are ideal for measuring natural gas, manufactured gas, LPG and other non-corrosive gases.

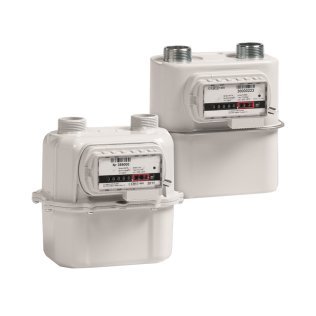

NOTE: the picture shown is only representative of the product!

EDIT PRODUCT CONFIGURATION

ORDER CODE:
UG-H-G40-570

Price on request

Can't find the right configuration? Ask for a quote.

Print product sheet

Product features
Principle of measurement	Deformable walls
Informations measured	Volume
Detection type	Continuous measurement
Measurable media	Natural Gas
Explosion protection	Safe zone
Minimum process fluid temperature	-25 °C
Maximum process fluid temperature	55 °C
Maximum process pressure	500 mBar
Measurement type	With contact
Storage temperature	-25...+60°C
Ambient temperature	-25...+55°C
Flow max (air)	65 m³/h
Flow minimum (air)	0,4 m³/h
Installation position	Horizontal
Flow direction	Unidirectional
Direction of connection	Lateral
Nominal flow rate	40 m³/h
Approx. starting flow rate	32 dm³/h
Area of use	For non-explosive atmospheres
Details of the signal inputs and outputs
All signal outputs available	Pulses
Signal Output Type	Pulse/frequency
Output details	None
Pulse factor	10 p/m³ = 0,1 m³/p
Digital output functions	Volume
Digital output type	REED
Number of digital outputs	1
Registry features
Displayable units of measure	m³
Display version	Mechanical
Number of lines that can be displayed	1
Register functions, line 1	Cumulative volume (non resettable)
Maximum displayable value (line 1)	999999,99 m³
Minimum displayable value	0,01 m³
Number of digits (line 1)
Mechanical data
Height	446 mm
Width	570 mm
Depth	398 mm
Measurement chamber volume	16,8 dm³
Approvals
Standards and Certifications	Directive MID 2014/32/EU "Measurement Instruments Directive"
CE omologation	Yes
Logistics
Contains batteries	No
Customs Code	90261000
Net weight	33 kg
