B-RS safety barrier for serial communication

B-RS safety barrier for RS485 (RS232) serial communication
B-RS safety barrier for serial communication
ORDER CODE:
 B-RS
Protection degree IP65
Atex approval present
Type of view TX/RX
Inputs RS485 (RS232)

The B-RS serial communication safety barrier is designed to separate and protect spark-safe circuits (devices in explosive environments) from other external circuits.

This device acts as an intrinsically safe separator for the communication circuits of the conversion devices, allowing the connection of standard devices for reading/writing data via RS485 (RS232) communication, such as PCs, PCL automation, external modems, to correctors/ intrinsically safe recorders.

Main features:

• Intrinsically safe barrier for RS232 and RS485 serial interfaces of ELCOR, ELCORplus, ELCORplus indexer, DATCOM and DATCOMplus series correctors and recorders.
• Mounting: on 35 mm DIN rail.
• Supply voltage: 12V DC.

The barrier is housed in a plastic box and designed for 35mm DIN rail installation. For connecting cables, there is a terminal block that can accommodate cables with a maximum section of 2.5 mm².



The communication barrier is available in two versions: the basic B-RS version and the B-RS/A version, which allows the separator to be powered only by battery.

ORDER CODE:
 B-RS

Price per Unit

€143.50(Vat excluded)
€175.07(Vat included)
Qty Unit price
(Vat excluded)		 Unit price
(Vat included)
1 €143.50 €175.07
Availability
25 working days
Quantity
Buy
Print product sheet
Accessories

ELCORplus Volume corrector
Price on request
the ELCORplus is a volume corrector with ATEX and MID certifications that modifies the given measurement given to it as input by taking into account temperature and pressure. The pressure switch can measure up to 130 bar while the temperature probe can go up to 70°C.
  • Atex approval present
  • Inputs pulses
  • Mouting wall
  • Display 128 x 64 LCD (12 digits)
Product Detail

HDR-15-12 DIN Rail Power Supply 220-12V, 1.25A
Price on request

The DIN-rail-mount HDR-15-12 power supply is an optimal solution for industrial applications that require a reliable, quality device.

  • Protection degree IP65
  • Atex approval present
  • Mouting DIN rail
  • versions of different output on request
Product Detail

CLO 4...20 mA current loop output module
Price on request

The CLO module is a digital signal converter for 4...20 mA current output. It can be connected to the digital outputs of the ELCOR series volume correctors, generating a direct current output proportional to measured analog quantities such as pressure, temperature and flow.

  • Protection degree IP65
  • Atex approval present
  • Signal output 4...20 mA
  • Inputs ELCOR/ELCORplus compatible
Product Detail

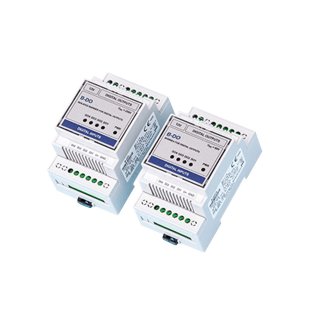

B-DO Intrinsically safe barrier for digital outputs
Price on request

B-DO is a digital output separator that serves as a safety barrier between intrinsically safe circuits (devices in potentially explosive areas) and external circuits. Facilitates the connection of conventional devices to intrinsically safe correctors and recorders.

  • Protection degree IP65
  • Atex approval present
  • Signal output Digital
  • Inputs Digital
Product Detail
