S117P1 SERIAL PORT CONVERTER RS232/USB, TTL/USB, RS485/USB

S117P1 ASYNCHRONOUS SERIAL CONVERTER RS232/USB, TTL/USB, RS485/USB, PORTABLE VERSION
S117P1 SERIAL PORT CONVERTER RS232/USB, TTL/USB, RS485/USB
ORDER CODE:
 S117P1

The S117P1 is a versatile opto-isolated device that serves as a serial converter, signal isolator and programming kit. This 3-in-1 tool facilitates asynchronous RS232/RS485/TTL conversion through a PC USB port, recognized by the operating system as a conventional serial port. This allows immediate use with any application that interacts with standard serial ports (COM1, COM2, etc.).

Designed to be portable, the S117P1 operates over a wide temperature range and incorporates opto-isolated circuitry to minimize electrical interference and noise, an essential advantage for long-distance connections. It is a solid and reliable device, capable of supplying power to modules from the S series or other manufacturers, delivering up to 12V@100mA.

Device Compatibility:

• Windows®

• Windows Server®

• Windows CE®

• Linux

• Mac OS

Package contents:

• S117P1 converter

• CS-JACK-DB9F serial cable

• CS-RJ10-AMP serial cable

• CU-A-MINIB-1 USB cable for connection to the PC

• Support CD

ORDER CODE:
 S117P1

Price per Unit

€187.00(Vat excluded)
€228.14(Vat included)
Qty Unit price
(Vat excluded)		 Unit price
(Vat included)
1 €187.00 €228.14
Availability
5 working days
Quantity
Buy
Print product sheet
Accessories

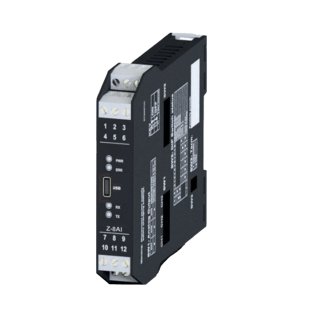

Z-8AI Module 8 analog inputs with Modbus RTU
Price on request

Z-8AI is an acquisition interface with Modbus RTU transmission for 8 analog signals in voltage or current within the ranges of ± 2.5 Vdc, ± 10 Vdc, and ± 20 mA, with a 16-bit resolution. The auxiliary power supply of the module can simultaneously power all 8 current loops.

  • Atex approval Only safe zone
  • Signal output Modbus RTU protocol
  • Inputs current or voltage analog
  • Mouting DIN guide 35 mm (IEC/EN 60715)
Product Detail

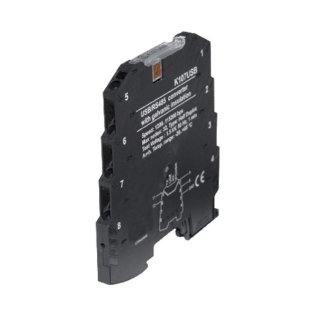

K107USB Optocoupled RS485 to USB Converter
Price on request

K107USB is an interface with RS485 type asynchronous serial communication with USB output. The interface is treated by the operating system as a standard system serial port, allowing the use of the product directly through any serial communication software.

  • Atex approval Only safe zone
  • Signal output USb communication
  • Inputs RS485 Modbus
  • Mouting DIN guide
Product Detail

RIF600P Ultrasonic flow meter
Price on request

The RIF600P is a portable ultrasonic instrument with good accuracy for flow and volume measurement. It has a data logger that can store up to 2000 lines of data. It is powered by three 1.2V batteries and can be used with CLS600 probes.

  • Measuring range up to 10 m/s
  • Process temperature up to 160°C
  • Protection degree IP65
  • Accuracy ±1% of the measured value on the test bench
Product Detail

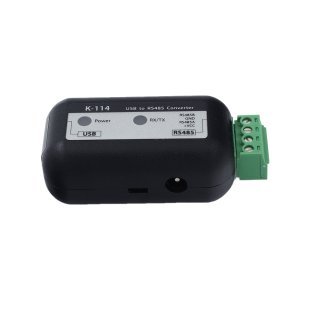

K-114 Interface converter
